基本型式

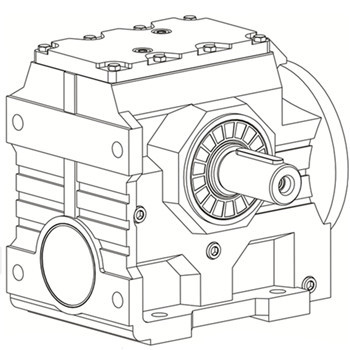

產品代號：S..

產品說明：兩級斜齒輪蝸輪減速傳動；底腳安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: S
Product Description: Two stage helical gear worm gear reduction drive; Foot installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

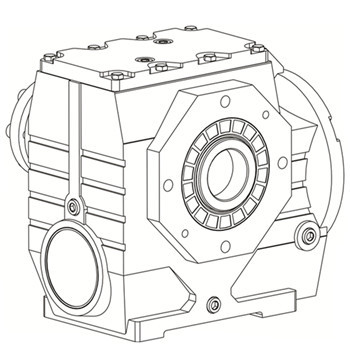

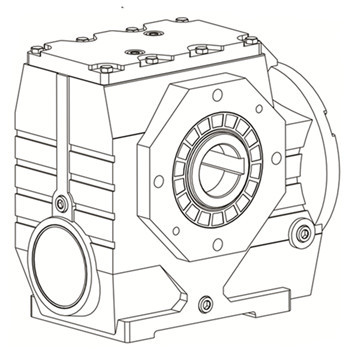

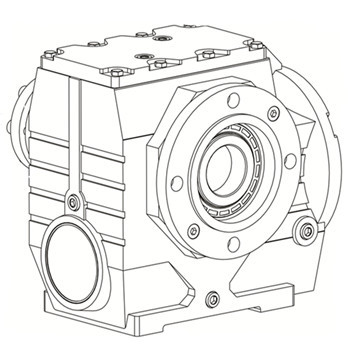

產品代號：SA..

產品說明：兩級斜齒輪蝸輪減速傳動；空心軸安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: SA
Product Description: Two stage helical gear worm gear reduction drive; Hollow shaft installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

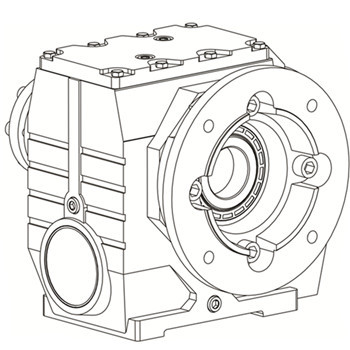

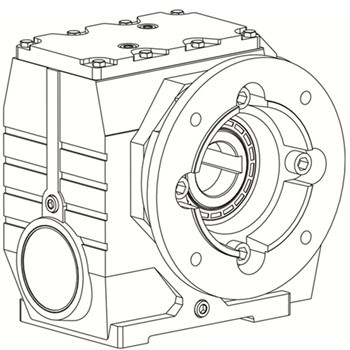

產品代號：SAF..

產品說明：兩級斜齒輪蝸輪減速傳動；B5法蘭空心軸安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: SAF
Product Description: Two stage helical gear worm gear reduction drive; Installation of B5 flange hollow shaft; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

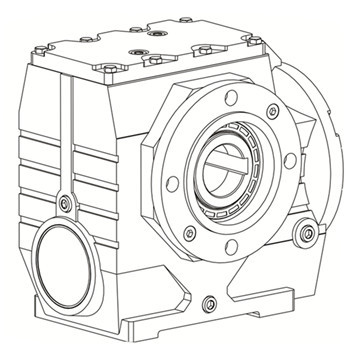

產品代號：SAZ..

產品說明：兩級斜齒輪蝸輪減速傳動；B14法蘭空心軸安裝；減速比范圍7.28～288.00；傳遞功率范圍0.12～22kW。

Product code: SAZ
Product Description: Two stage helical gear worm gear reduction drive; B14 flange hollow shaft installation; Reduction ratio range from 7.28 to 288.00; The transmission power range is 0.12-22kW.

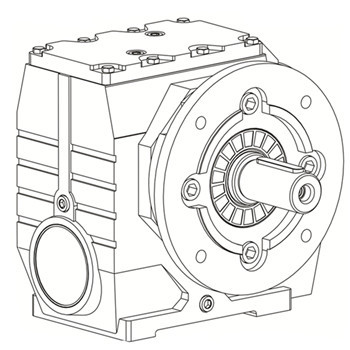

產品代號：SF..

產品說明：兩級斜齒輪蝸輪減速傳動；B5法蘭安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: SF
Product Description: Two stage helical gear worm gear reduction drive; B5 flange installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

產品代號：SH..

產品說明：兩級斜齒輪蝸輪減速傳動；空心軸鎖緊盤安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: SH
Product Description: Two stage helical gear worm gear reduction drive; Installation of hollow shaft locking plate; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

產品代號：SHF..

產品說明：兩級斜齒輪蝸輪減速傳動；B5法蘭空心軸鎖緊盤安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: SHF
Product Description: Two stage helical gear worm gear reduction drive; Installation of B5 flange hollow shaft locking plate; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

產品代號：SHZ..

產品說明：兩級斜齒輪蝸輪減速傳動；B14法蘭空心軸鎖緊盤安裝；減速比范圍6.80～288.00；傳遞功率范圍0.12～22kW。

Product code: SHZ
Product Description: Two stage helical gear worm gear reduction drive; B14 flange hollow shaft locking plate installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

輸入型式

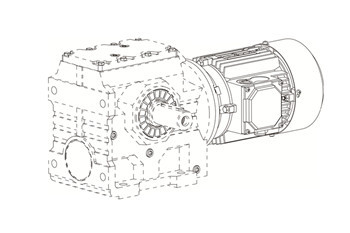

產品代號：Y..

產品說明：直聯電機輸入。直接將各種類型的電動機（如普通電機、剎車電機、防爆電機等）作為齒輪減速機的輸入，這樣可有效減小傳動裝置的外形尺寸。

Product code: Y
Product Description: Direct connected motor input. Directly using various types of motors (such as ordinary motors, brake motors, explosion-proof motors, etc.) as inputs for gear reducers can effectively reduce the external dimensions of the transmission device.

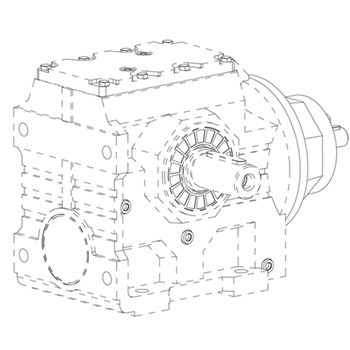

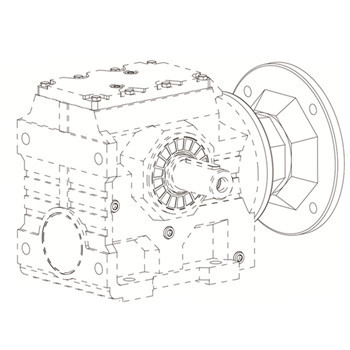

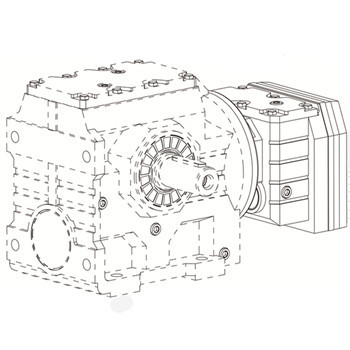

產品代號：AM..

產品說明：IEC法蘭輸入。通過一個AM輸入模塊，將標準IEC接口的電機與減速機連接。

Product code: AM
Product Description: IEC flange input. Connect the standard IEC interface motor to the gearbox through an AM input module.

產品代號：AD..

產品說明：AD軸輸入。通過一個AD軸輸入模塊，可實現鏈輪、皮帶輪等方式作為減速機的輸入。

Product code: AD
Product Description: AD axis input. Through an AD axis input module, it is possible to use sprockets, pulleys, and other methods as inputs for the gearbox.

組合應用

產品代號：S../RF..
產品說明：為得到特別低的輸出轉速，可以將RF減速機做為S減速機的輸入。

Product code: S/ RF
Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the S gearbox.

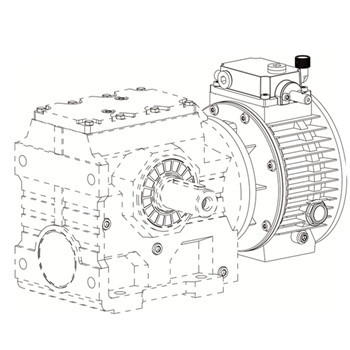

產品代號：S../UD..

產品說明：為得到特別低并且可以連續變化的輸出轉速，可以將UD無級變速器做為S減速機的輸入。

Product code: S/ UD
Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the S gearbox.
